Seated type electric tow tractor loading rated capacity 4.0-6.0T.It is used for cargo hauling operations under 4-6 tons; medium and long-distance cargo hauling operations; loading and unloading and handling palletized goods in warehouses, supermarkets, and workshops.
● Simple and elegant overview design;
● Big Inner/outer space for storage;
● Comfortable operation;
● More options.
Item No :
NQSPayment :
T/TProduct Origin :
ChinaColor :
Green/Red/CustomizedShipping Port :
Shanghai/Nanjing/Ningbo,etcLead Time :
25-30 daysOrder(MOQ) :

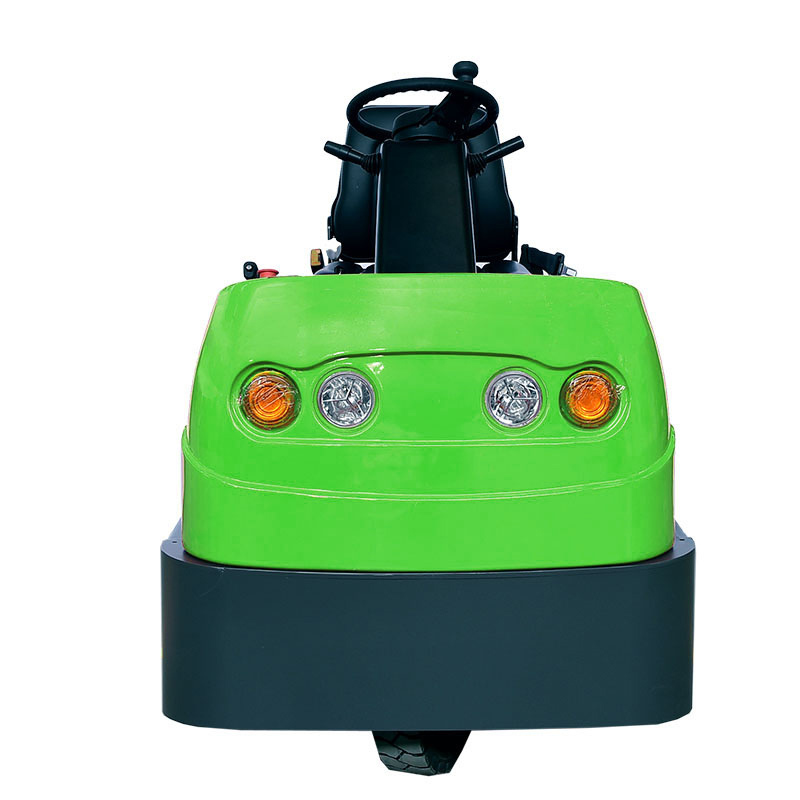

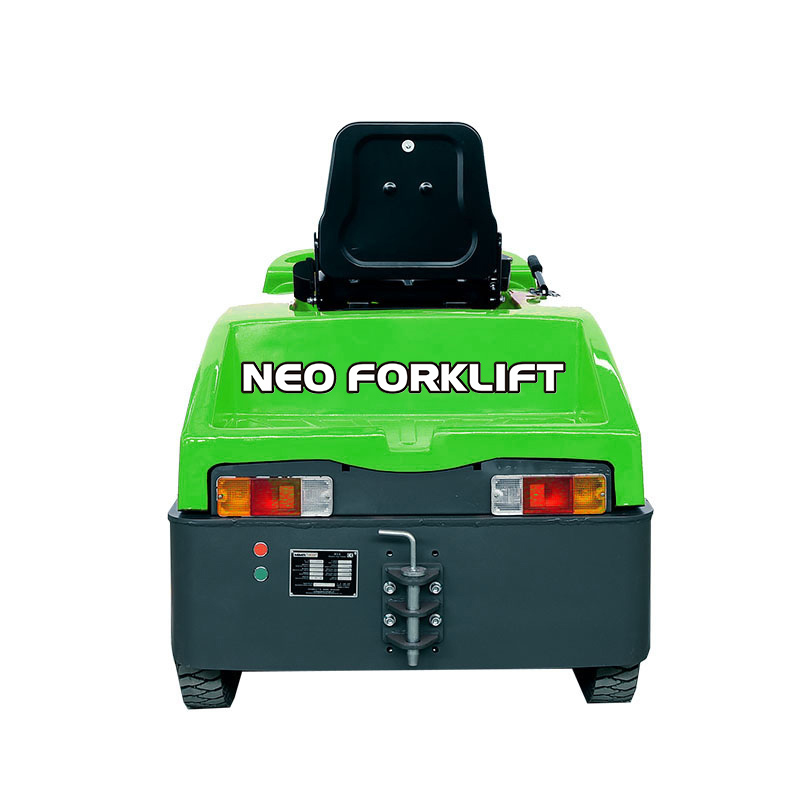

1 unit4.0-6.0 Tons Electric Seated Type Tow Tractor
Seated type electric tow tractor loading rated capacity 4.0-6.0T.It is used for cargo hauling operations under 4-6 tons; medium and long-distance cargo hauling operations; loading and unloading and handling palletized goods in warehouses, supermarkets, and workshops.Simple and elegant overview design;Big Inner/outer space for storage;Comfortable operation;More options.

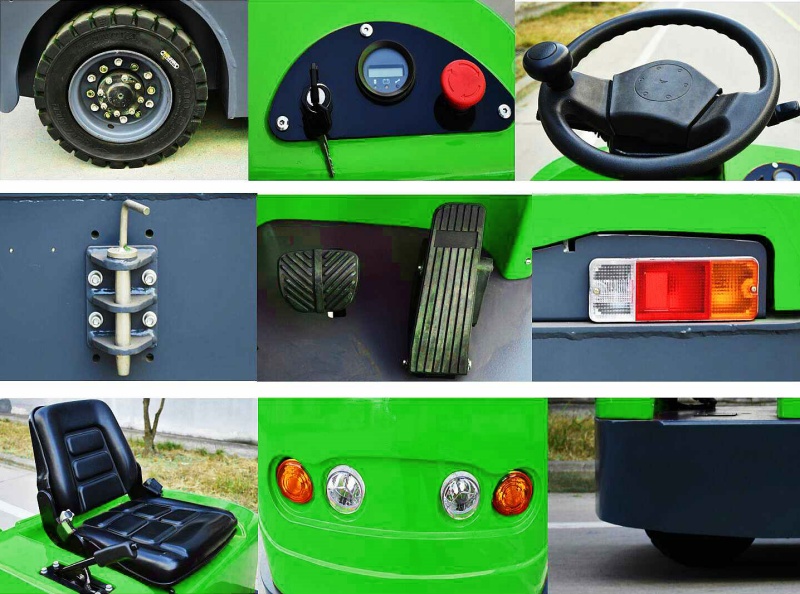

Details:
Features:
1. Three fulcrum structure, small turning radius.
2. Maintenance-free AC drive system.
3. Various specifications of batteries can meet different customer needs.
4. Electric steering, light and flexible steering.
5. The inching switch is jogged at the rear, and a single person can load and unload the trailer.
6. Large capacity external storage compartment.
7. Forward and backward can be switched.

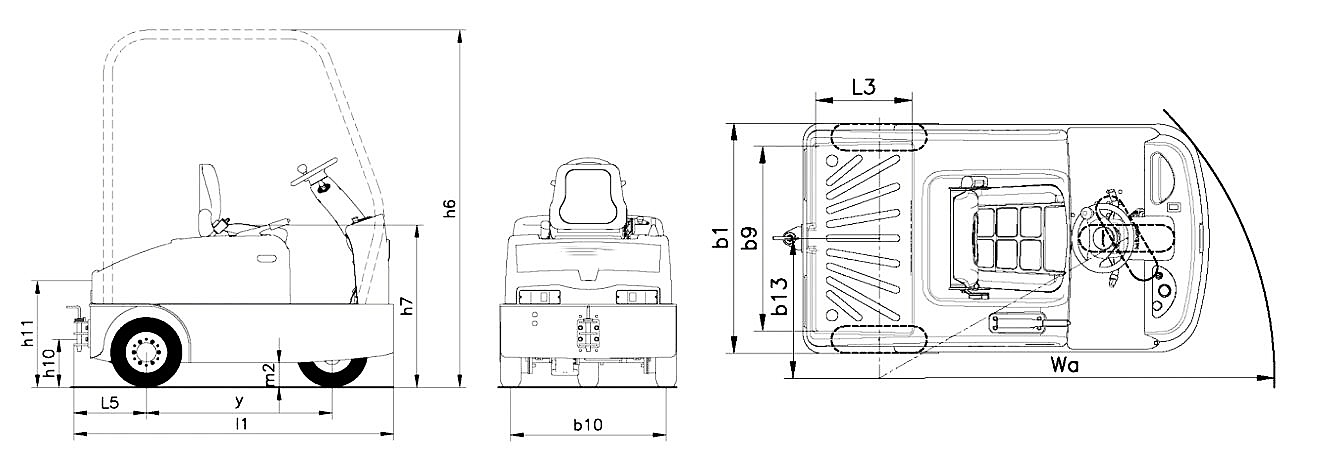

Specification:
Manufacturer | NEOlift | ||||
Model | NQS40 | NQS60 | |||
Power type | Battery | Battery | |||
Operation type | Seat | Seat | |||
Rated drawbar pull | N | 800 | 1200 | ||
Service weight(incl. battery) | kg | 920 | 1000 | ||
Overall length | mm | 1790 | 1790 | ||
Overall width | mm | 990 | 990 | ||
Service brake | Hydraulic brake/Regenerative brake | ||||
Drive motor rating(S2-60 min) | kw | 3 | 4.5 | ||
Battery voltage/rated capacity | V/Ah | 24/490 | 48/280 | ||
Battery weight | kg | 390 | 475 | ||
Steering System | EPS | EPS | |||

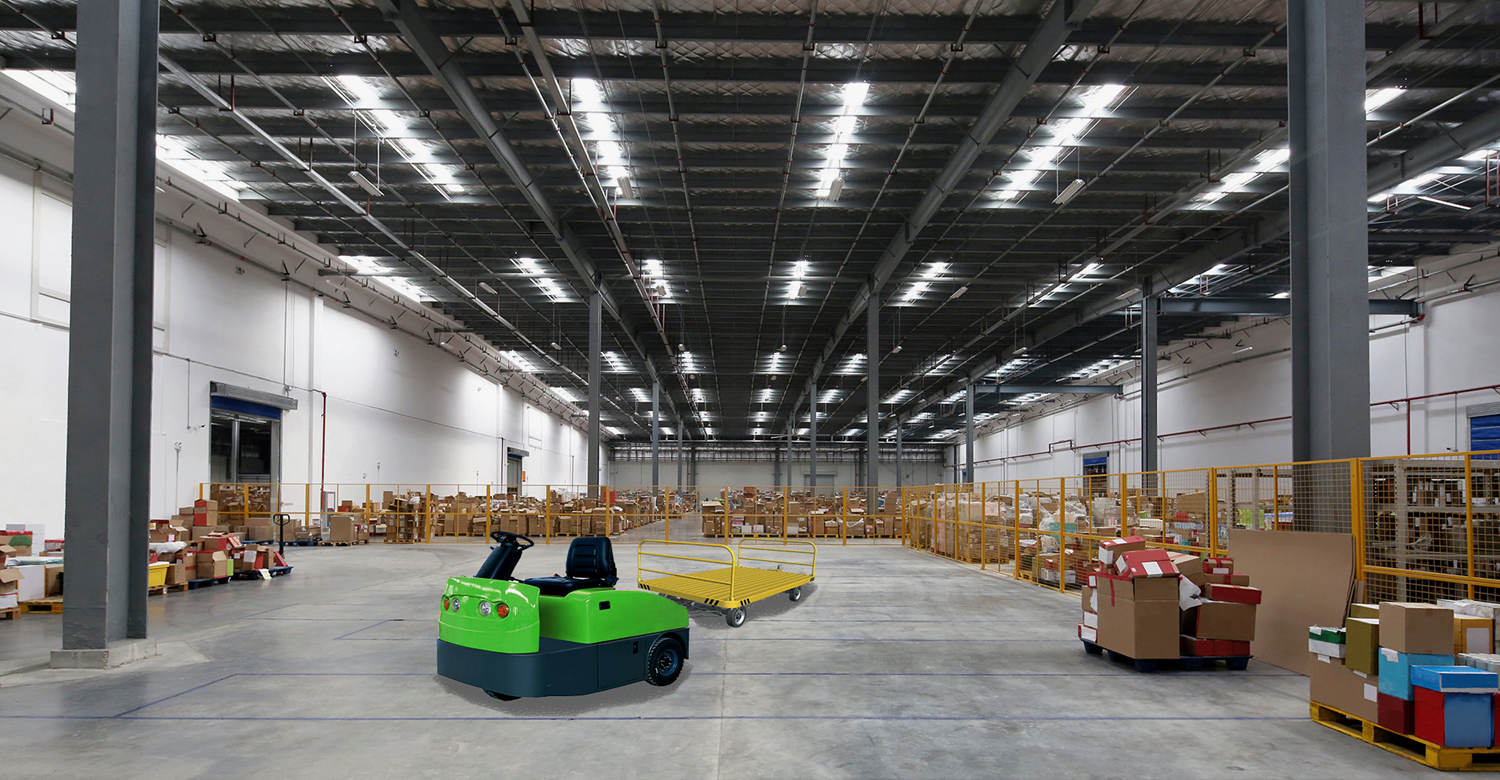

Application:
1.Logistics,
2.Warehousing
3.Food
4.Textile,
5.Printing
6.Cold chain and other industries.
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
