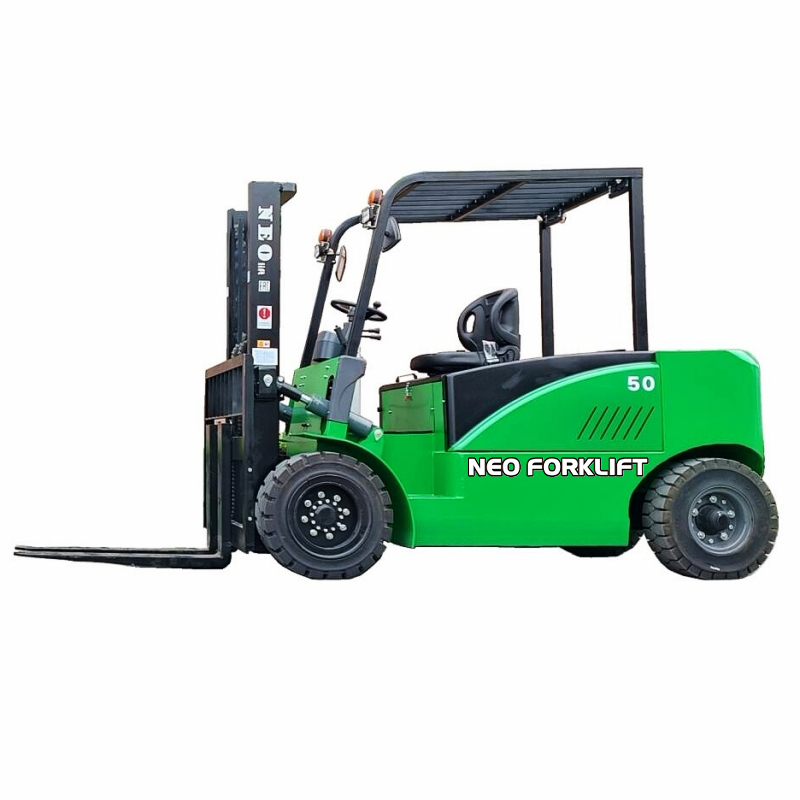

4 Wheel electric counterbalance forklifts have lead-acid battery and lithium battery,loading capacity 1.5-5.0 tons with lifting heights 3-6meters, with AC drive motor for higher working efficiency,more stable and safer.
Item No :
NPSPayment :
T/TProduct Origin :
ChinaColor :
Green/Red/CustomizedShipping Port :
Shanghai/Ningbo/Nanjing,etcLead Time :
10 daysOrder(MOQ) :
1 unit4 Wheel Electric Counterbalance Forklift For Storage
4 Wheel Electric Counterbalance Forklift For Storage can be lead-acid battery and lithium battery,loading capacity 1.5-5.0 tons with lifting heights 3-6meters.Pneumatic tires and solid rubber tires can be selected, which can adapt to various complex working conditions. Large capacity battery, strong power. Suitable for logistics, warehousing, food, electronics, chemical and other industries.
Details:
Features:
1.Adopt hanging counterweight design, greatly improve the maneuverability
2. Low energy consumption and good heat dissipation.
3. Standard smart meter, optional full AC system
4. Larger space, more comfortable and easy to operate
5. Low center of gravity design, more secure
6. The layout of the whole vehicle is more reasonable, the size is small, and the own weight is low
7. Imported controller, more stable and safer
8. Wide vision gantry design to improve work efficiency
9. Various attachments can be configured to meet the needs of different working condition
Specification:
Manufacturer | NEOlift | |||||||
Model | NPS10 | NPS15 | NPS20 | NPS25 | NPS30 | |||
Power Type | Battery | Battery | Battery | Battery | Battery | |||
Rated Capacity | kg | 1000 | 1500 | 2000 | 2500 | 3000 | ||
Service Weight(incl.battery) | kg | 1900 | 2700 | 3200 | 4000 | 4200 | ||
Lift height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | ||
Overall length without forks | mm | 1850 | 1950 | 2350 | 2700 | 2700 | ||
Overall width | mm | 1100 | 1110 | 1100 | 1230 | 1230 | ||
Fork size | mm | 1070/100/30 | 1070/100/35 | 1070/100/40 | 1070/100/45 | 1070/100/45 | ||
Installation level | 2A | 2A | 2A | 2A | 2A | |||
Driving motor(S2-60min) | kw | AC4 | AC5 | AC7.5 | AC10 | AC13 | ||
Battery voltage/capacity | V/Ah | 48/350 | 48/480 | 48/480 | 48/550 | 48/550 | ||
Steering system | Hydraulic type | Hydraulic type | Hydraulic type | Hydraulic type | Hydraulic type | |||
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service. Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
