K series diesel counterbalanced forklifts have a load capacity of 1.5 tons to 5 tons and a lifting height of 3 meters to 7 meters. They can be equipped with Euro III, Euro V and EPA engines and are widely used in construction, logistics, mining, terminals and other industries.
Item No :
CPCDPayment :
T/TProduct Origin :
ChinaColor :
Green/Red/CustomizedShipping Port :
Shanghai/Ningbo/Qingdao,etcLead Time :
15 daysEngine :
Chinese/Japanese engineOrder(MOQ) :

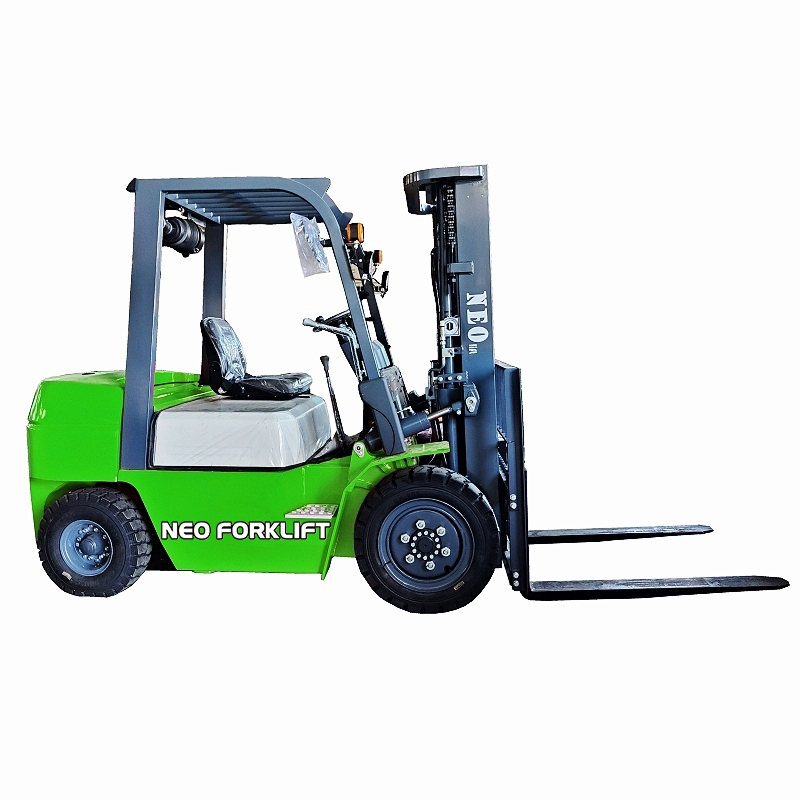

1 unitK series 1.5-5 tons diesel counterbalanced forklift
K series diesel counterbalanced forklifts have a load capacity of 1.5 tons to 5 tons and a lifting height of 3 meters to 7 meters. They can be equipped with Euro III, Euro V and EPA engines, and can also be equipped with specified engines according to requirements. This series of forklifts have good cost performance, safety and efficiency, and are widely used in construction, logistics, mining, docks and other industries.
Details:
Features:
1.Simple, elegant and beautiful appearance, strict environmental protection design;
2. Wide view mast design makes the driver’s vision wider;
3. Reliable LCD digital special instruments and friendly human-machine interface make it easy for the driver to accurately control the vehicle status;
4. The new steering wheel adjustment mechanism improves operating comfort and adjustment reliability;
5. The design of the high-top large-diameter air intake system can keep the engine away from dust, effectively exert the engine performance and extend the service life;
6. Optional cast steering axle reduces later maintenance costs.
Specification:
Model |
|
CPC15 |
CPC20 |
CPC25 |
CPC30 |
CPC35 |
CPC40 |
CPCD50 |
Power |
|
Desiel |
Desiel |
Desiel |
Desiel |
Desiel |
Desiel |
Desiel |
Capacity |
kg |
1500 |
2000 |
2500 |
3000 |
3500 |
4000 |
5000 |
Load center |
mm |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
Lift height |
mm |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
Fork size |
mm |
920×100×35 |
1070×122×40 |
1070×122×40 |
1070×125×45 |
1070×125×50 |
1070×150×45 |
1070×150×50 |
Mast tilt |
Deg. |
6/12 |
6/12 |
6/12 |
6/12 |
6/12 |
6/12 |
6/12 |
Wheelbase |
mm |
1410 |
1600 |
1600 |
1700 |
1700 |
1900 |
2200 |
Service weight |
Kg |
2660 |
4030 |
4130 |
4350 |
4560 |
5300 |
7000 |
Battery |
V/Ah |
12/80 |
12/80 |
12/80 |
12/80 |
12/80 |
12/100 |
(12/80)x2 |
Engine |
|
Xinchai 4D27G31 |
Xinxhai4 D27G31 |
Xinchai4 D27G31 |
Xinchai 4D27G31 |
Xinchai 4D27G31 |
Xinchai 4D30G31 |
Xinchai 4D35 |
Engine rated power |
kw/r.p.m |
32 |
36.8 |
36.8 |
36.8 |
36.8 |
36.8 |
60 |
Gearbox |
|
Mechanical /Hydraulic |
Mechanical /Hydraulic |
Mechanical /Hydraulic |
Mechanical /Hydraulic |
Mechanical /Hydraulic |
Mechanical /Hydraulic |
Mechanical /Hydraulic |
Working pressure |
Mpa |
18.5 |
18.5 |
18.5 |
18.5 |
18.5 |
18.5 |
18.5 |
Application:
1.Warehouse
2.Port
3.Factory
4.Distribution Center
5.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
