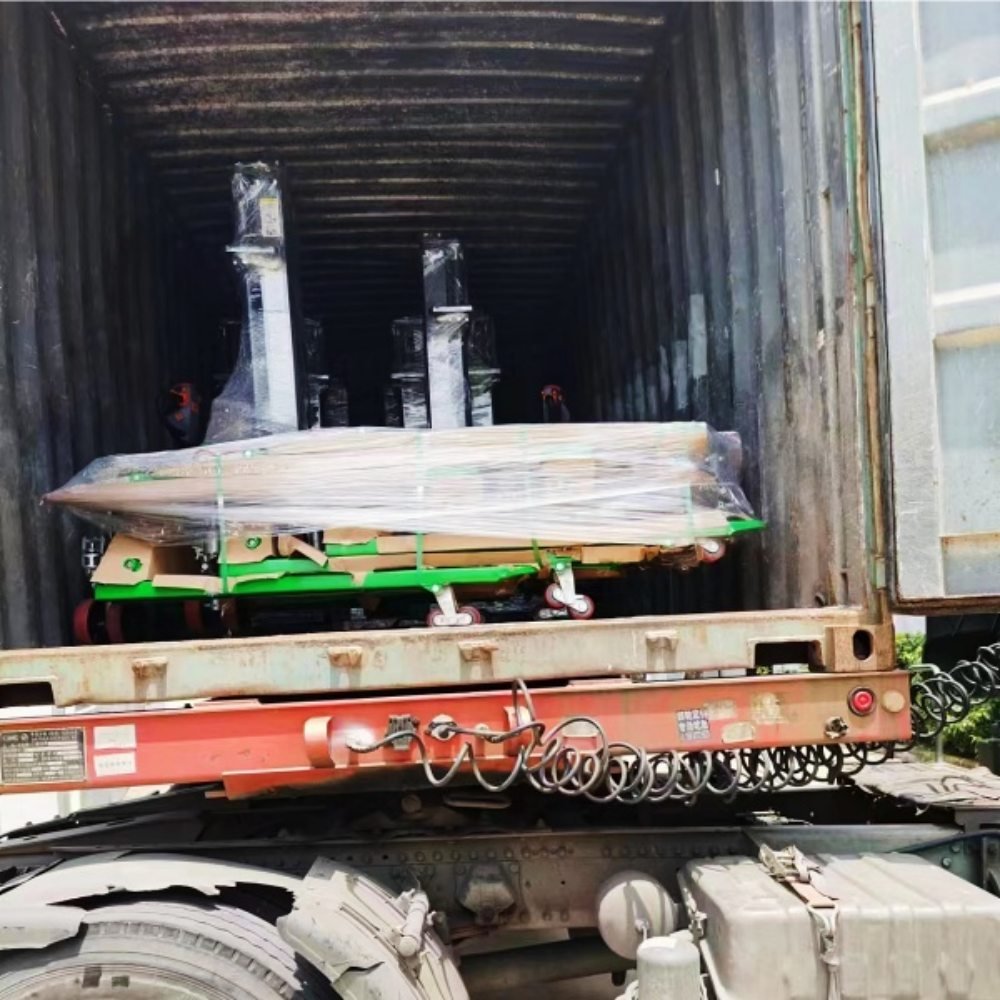

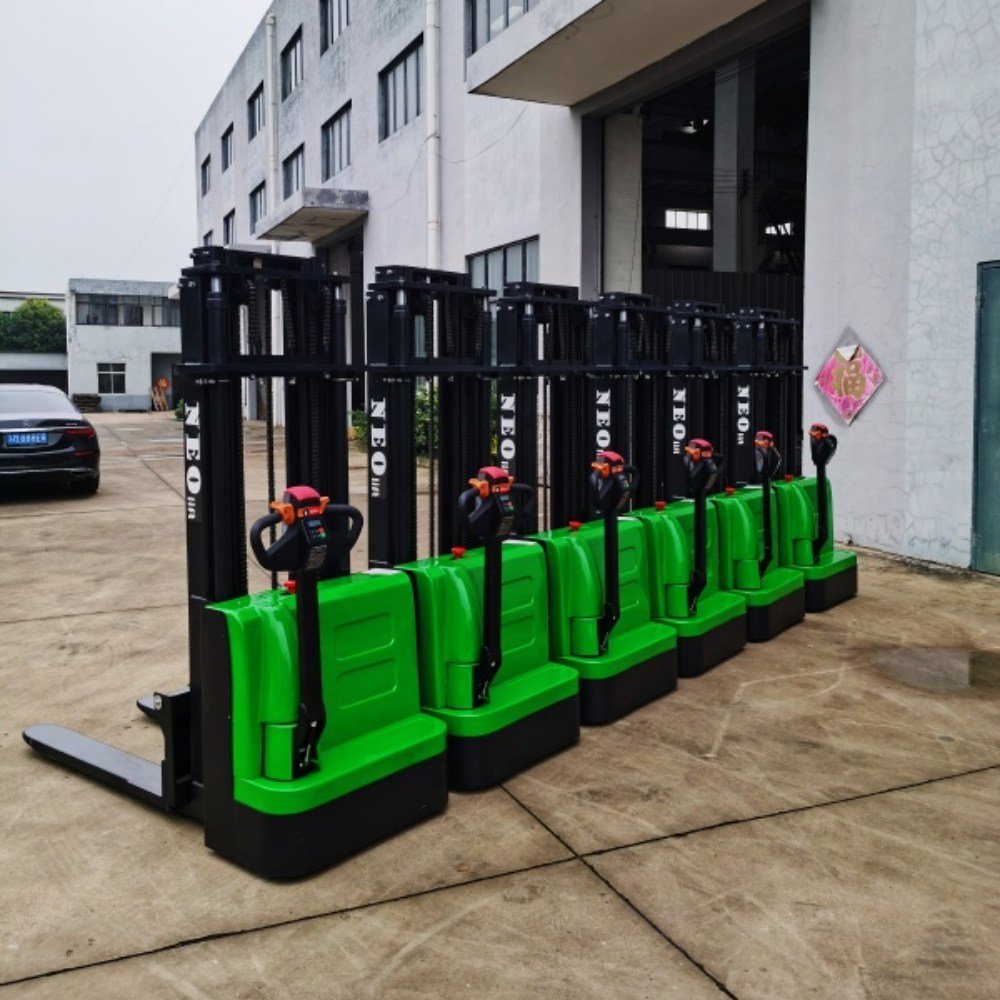

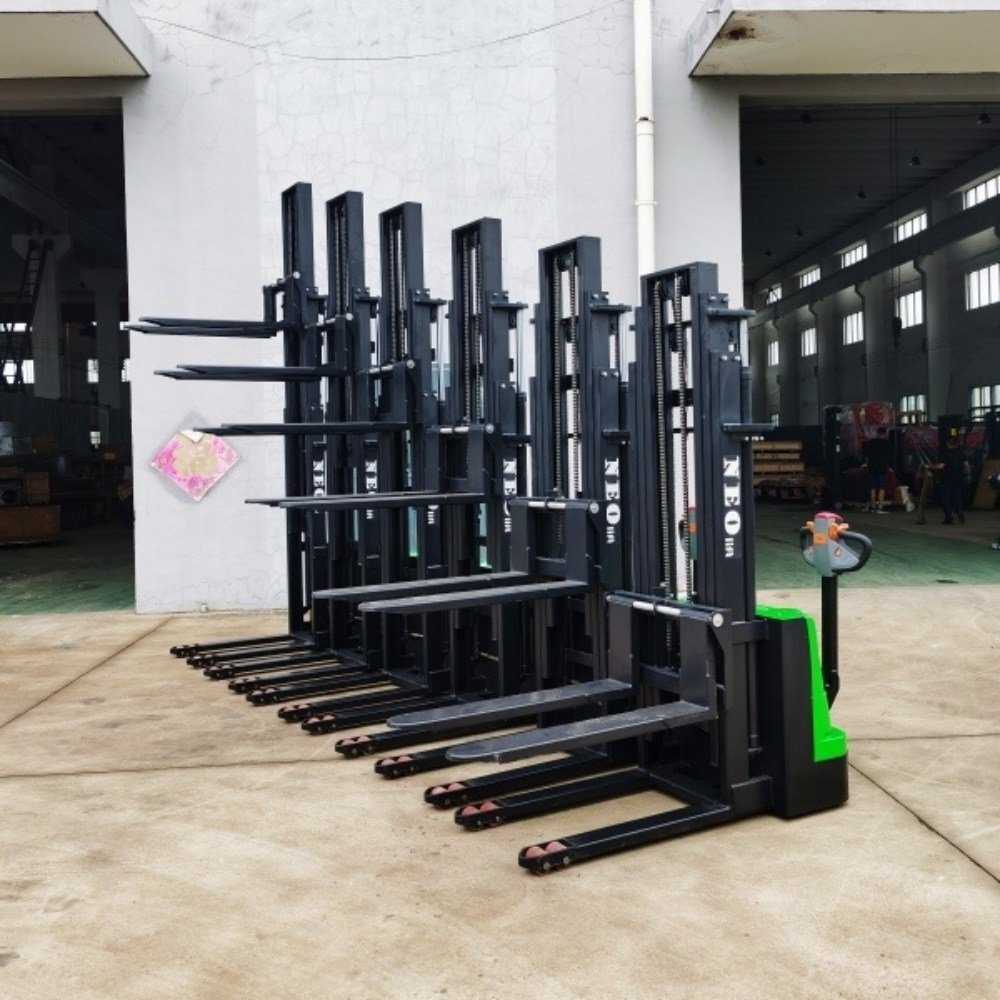

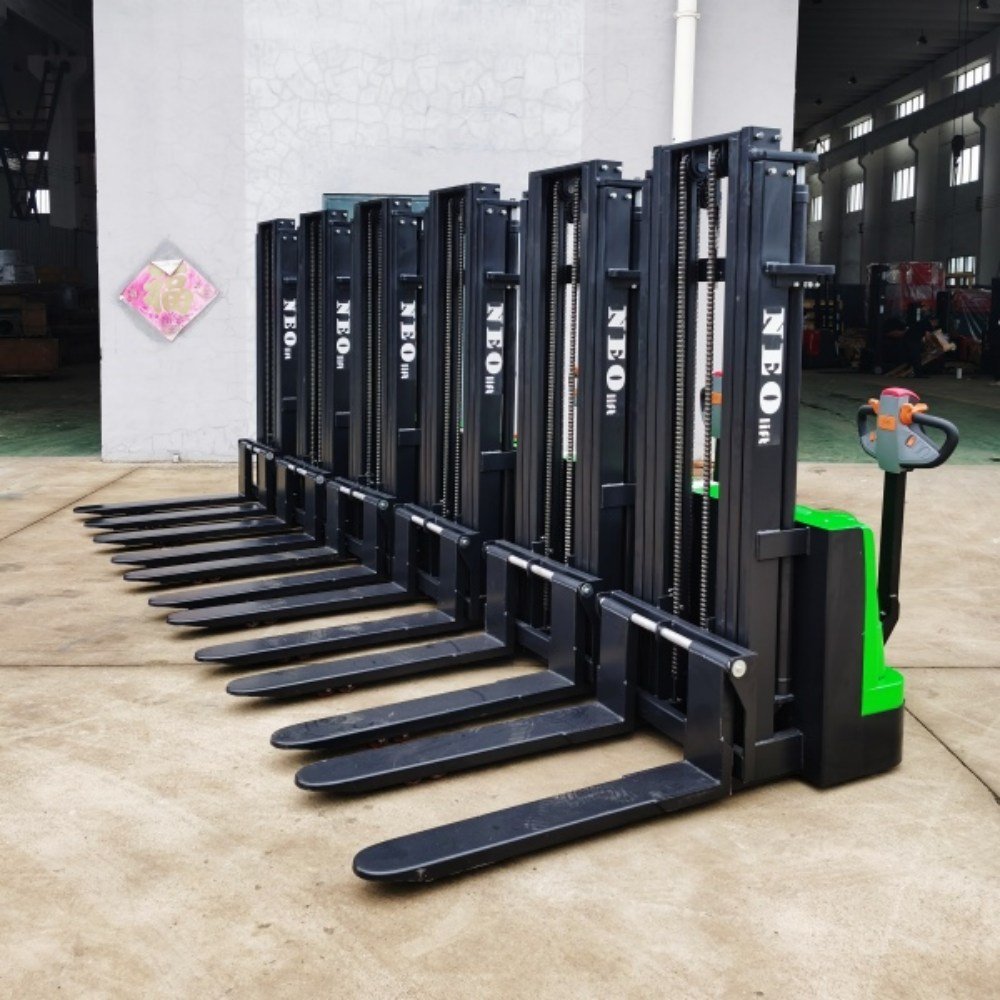

A batch of new electric stackers will be sent to an Indonesian customer, who is our old customer and mainly engaged in the food industry. This is the third purchase by the customer, and the customer's multiple purchases fully demonstrate the customer's recognition of our products. This batch of 6 walking stackers, with a load capacity of 1.5 tons, a lifting height of 4.5 meters, a triplex mast, and a 24V120Ah lead-acid battery. Next, let's learn about electric stackers.

Ⅰ.The meaning of electric stackers:

Electric pallet stackers are a type of storage equipment that uses battery power as energy and motors as power sources. The main structure includes: batteries, motors, hydraulic pumps, cylinders, piston rods, forks, chains, controllers and other devices. Its main function is to lift heavy objects to the required height. It is generally used in warehouses, workshops and other places where logistics handling is required. When used with pallets, it can greatly improve the efficiency of storage. Therefore, electric stackers are also called electric pallet stackers.

Ⅱ. Operation method:

1. Driving Before driving the vehicle, check the working conditions of the brakes and pump stations, and ensure that the battery is fully charged. Hold the control handle with both hands and use force to slowly move the vehicle towards the work goods. If you need to stop, you can use the handbrake or foot brake to stop the vehicle.

2. Unloading

(1) When the fork is in a low position, keep it vertical to the shelf and carefully approach the shelf and insert it into the bottom of the pallet.

(2) Back up the stacker and let the fork move out of the pallet.

(3) Raise the fork to the required height and slowly move it to the pallet to be unloaded, while ensuring that the fork can easily enter the pallet and the goods are in a safe position on the fork.

(4) Raise the fork until the pallet is lifted from the shelf.

(5) Slowly back up in the aisle.

(6) Slowly lower the goods while ensuring that the fork does not touch obstacles during the lowering process. Note: During the lifting of the goods, steering and braking operations must be slow and careful.

3. Stacking

(1) Keep the goods low and approach the shelf carefully.

(2) Lift the goods to the top of the shelf .

(3) Move forward slowly and stop when the goods are above the shelf. At this point, lower the pallet and make sure that the fork does not exert force on the shelf under the goods to ensure that the goods are in a safe position.

(4) Slowly retreat and ensure that the pallet is in a secure position.

(5) Lower the fork to a position where the stacker can move.

4. Safety facilities

(1) Main switch: main power switch.

(2) Foot brake: reliable parking brake.

(3) Flow limiting valve: control the descending speed.

(4) Pressure limiting valve: control the load.

(5) Protective net: protect the driver.

5. Prohibitions

(1) Do not operate the electric stacker while drunk.

(2) Do not overload, stack unevenly or flatly.

(3) Do not ride astride.

(4) Do not park on ramps or steps.
